B.R.C

B.R.C

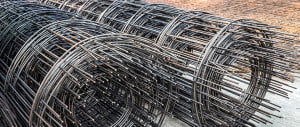

British Reinforced Concrete (BRC) is manufactured from hard drawn wire. We operate a semi-automatic BRC machine to achieve a uniform spacing of wires and consistent cross sectional area. The machine applies controlled automatic electric welding to provide standardised BRC without loss of strength. As the intersections are welded the shape of the BRC can be cut or bent according to the consumer’s requirement.

There are four types of BRC:-

Square
Structural
Long
Wrapping Fabric

Description

MESH REFERENCE	MESH SIZE (NOMINAL PITCH OF WIRES) , MM		WIRE SIZES, MM		CROSS-SECTIONAL AREA PER METER WIDTH , MM²		NOMINAL MASS PER SQUARE METRE
	Main, mm	Cross, mm	Main, mm	Cross, mm	Main, mm²	Cross, mm²	Kg
SQUARE
A393	200	200	10	10	393	393	6.16
A252	200	200	8	8	252	252	3.95
A193	200	200	7	7	193	193	3.03
A142	200	200	6	6	142	142	2.22
A94	200	200	5	5	98	98	1.54
A65	180	180	4	4	149	149	1.11
A66	180	180	3	3	123	123	0.63
A610	180	180	2.5	2.5	54.4	54.4	0.43

STRUCTURAL
B503	100	200	8	7	503	252	5.93
B385	100	200	7	7	385	193	4.53
B283	100	200	6	7	283	193	3.75
B196	100	200	5	7	196	193	3.05

LONG
C785	100	400	10	6	785	70.8	6.72
C503	100	400	8	5	583	49.0	4.34
C385	100	400	7	5	385	49.0	3.41
C283	100	400	6	5	283	49.0	2.61

WRAPPING FABRIC
D98	200	200	5	5	98.0	98.0	1.54
D49	100	100	2.5	2.5	49.1	49.0	0.77
